Digital Logic

Binary numbers and Voltage Levels

Binary digits are 0 and 1. In digital logic these two digits are use to represent two voltage levels.

Signals in digital electronics have two distinct voltage levels with built-in tolerances for variations in the voltage
A valid digital signal should be within either of the two shaded areas

AND gate

Boolean Expression

X = A . B

Logic Diagram Symbol


Truth Table


OR gate

Boolean Expression


X = A + B


Logic Diagram Symbol


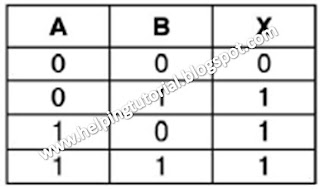

Truth Table


Tri-state buffer

Inverter



Boolean Expression

X = A'



Logic Diagram Symbol


Truth Table

XOR gate

Boolean Expression


Logic Diagram Symbol


Truth Table


NAND Gate

Boolean Expression

X = (A . B)'

Logic Diagram Symbol


Truth Table




NOR gate

Boolean Expression

X = (A + B)'

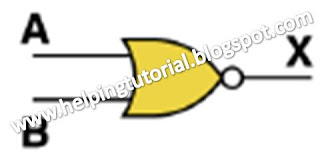

Logic Diagram Symbol


Truth Table
